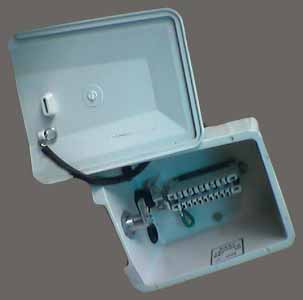

5 pair dp boxes consist of a 5 pair disconnection/connection module for     inlet & outlet of the cable.

The boxes are made of all weather polycarbonate material and injection     moulded

They are provided with lock to prevent tampering of the connection

5 pair disconnection / connection modules are of IDC type, which provides     gas tight & corrosion proof contact

The IDC is made by the use of a connecting insertion tool.

5 pair disconnection /connection are of contacts which are housed in high    quality plastic housing.

The connection are made in the front of the module

Each module can take 5 pairs of cable wire on one side & 5 pair of jumper    wire on the other side

Cable/Jumper wire size from 0.4 mm to 0.63mm can be used

Provision is available for providing surge protection on the module

The dp boxes can be mounted any ware easily

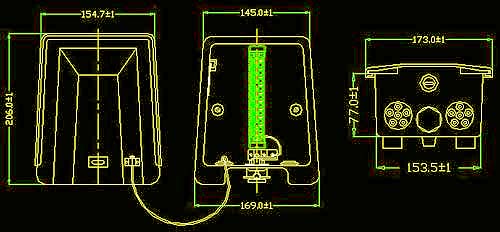

10 pair dp boxes consist of a 10 pair disconnection/connection module for     inlet & outlet of the cable.

The boxes are made of all weather polycarbonate material and injection    moulded

They are provided with lock to prevent tampering of the connection

10 pair disconnection / connection modules are of IDC type, which provides    gas tight & corrosion proof contact

The IDC is made by the use of a connecting insertion tool.

10 pair disconnection /connection are of contacts which are housed in high    quality plastic housing

The connection are made in the front of the module

Each module can take 10 pairs of cable wire on one side & 10 pair of    jumper wire on the other side

Cable/Jumper wire size from 0.4 mm to 0.63mm can be used

Provision is available for providing surge protection on the module

The dp boxes can be mounted any ware easily

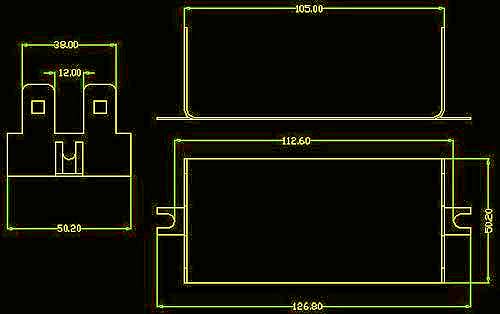

20 pair dp boxes consist of two 10 pair disconnection/connection module     for inlet & outlet of the cable.

The boxes are made of all weather polycarbonate material and injection    moulded

They are provided with lock to prevent tampering of the connection

10 pair disconnection / connection modules are of IDC type, which provides    gas tight & corrosion proof contact

The IDC is made by the use of a connecting insertion tool.

10 pair disconnection /connection are of contacts which are housed in high    quality plastic housing

The connection are made in the front of the module

Each module can take 10 pairs of cable wire on one side & 10 pair of    jumper wire on the other side

Cable/Jumper wire size from 0.4 mm to 0.63mm can be used

Provision is available for providing surge protection on the module

The dp boxes can be mounted any ware easily



30/50 pair dp boxes consist of a 10 pair disconnection/connection module     for inlet & outlet of the cable.

Suitable for both internal and external applications

The boxes are made of all weather machine moulded fibreglass compound    (SMC)

They are provided with lock to prevent tampering of the connection

10 pair disconnection / connection modules are of IDC type, which provides    gas tight & corrosion proof contact

The IDC is made by the use of a connecting insertion tool.

10 pair disconnection /connection are of contacts which are housed in high    quality plastic housing

The connection are made in the front of the module

Each module can take 10 pairs of cable wire on one side & 10 pairs of    jumper wire on the other side

Cable/Jumper wire size from 0.4 mm to 0.63mm can be used

Provision is available for providing surge protection on the module

The dp boxes can be mounted on wall or pole easily

100/200 pair dp boxes consist of 10 or 20 numbers of 10 pair     disconnection/connection module for inlet & outlet of the cable.

Suitable for both internal and external applications

The boxes are made of powder coated mild steel

They are provided with lock to prevent tampering of the connection

10 pair disconnection / connection modules are of IDC type, which provides    gas tight & corrosion proof contact

The IDC is made by the use of a connecting insertion tool.

10 pair disconnection /connection are of contacts which are housed in high    quality plastic housing

The connection are made in the front of the module

Each module can take 10 pairs of cable wire on one side & 10 pairs of    jumper wire on the other side

Cable/Jumper wire size from 0.4 mm to 0.63mm can be used

Provision is available for providing surge protection on the module

The dp boxes can be mounted on wall or pole easily
